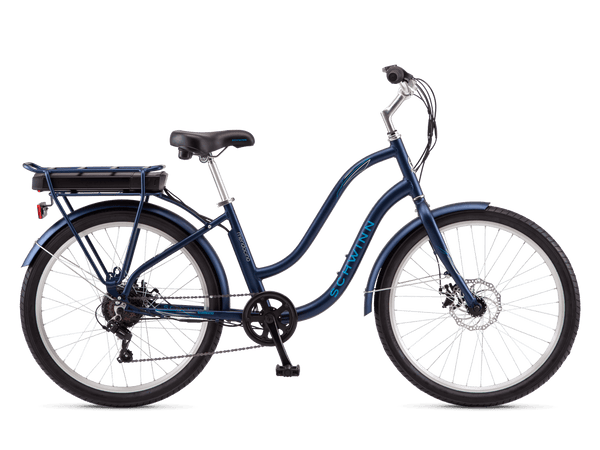

Mendocino Step-Thru Electric Bike
Available at the following retailers:
Power Up
Ride up to 20 MPH with the 250-watt brushless geared hub drive pedal assist motor that gives you a boost while you pedal. Choose from several levels of assistance.
Charge Up & Ride
Go up to 45 miles on a single charge, depending on conditions with the 313-watt hour rack mounted battery. Recharge in 4 hours with a standard household outlet and included charging cable.
Shift Gears Smoothly
6-speed twist shifter offers smooth, reliable gear changes. Easily adapt to your terrain – hills, flat areas, and everything in between – with just a twist.
Stopping Power
Front and rear mechanical disc brakes deliver all-weather stopping power and speed control. You can ride with confidence through rain, dust, and more.
Comfort & Durability
Aluminum cruiser frame provides lightweight durability with a vintage-inspired look that never goes out of style. Plus, the comfortable upright riding position makes riding a delight.
Product Details
E-Bike Features
Motor
250-watt hub drive motor
Controller
2 function LED controller
Range
45 miles per charge
Drive System
Pedal assist
Battery
313 watt-hour rack mounted battery
Max Speed
Class 2 e-bike
Recharge Time
4 hours
Technical Specifications
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Fork
Hi-Ten steel, 26", Hi-Ten steel, 100 mm bolt-on, bolt-on
Crank
3-piece, 42T
Chain
KMC
Bottom Bracket
Cartridge, square taper, 68mm
Shifters
Shimano REVOSHIFT twist, 6-speed
Rear Derailleur
Shimano Tourney
Rims
Aluminum, double wall, 19 mm ID, 36H, non tubeless
Rear Hub
Aluminum, sealed-bearing, 10 mm x 135 mm QR, 36H, 6-bolt
Spokes
14G/13G, steel
Tires
26 in x 2.125 in, wire bead
Pedals
Nylon
Brakes
Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Handlebar
Cruiser, Hi-Ten steel, 635 mm width, 50 mm rise, 25.4 mm clamp
Stem
Aluminum, threaded front load, 30° rise, 25.4 mm clamp
Headset
Threaded, retainer bearing
Seat Post
Aluminum, 400 mm, 20 mm offset
Saddle
Schwinn, steel rails
Grips
130 mm
Sizes
Height 36.22 in, Length 58.66 in, 66.14 lbs.
Extras
Rear rack included, 55 lbs capacity
Max Payload
300 lbs
Geometry
Accessories
Ride Safely, and in Style
Cruiser E-Bikes
Best Terrain: Pavement
Fits riders 5'4" - 6'2"
Fits riders 5'4" - 6'2"
Up to 45 miles per charge
Up to 45 miles per charge
Pedal Assist up to 20 MPH
Pedal Assist up to 20 MPH
-
Throttle up to 20 MPH
